Gaskets

PRODUCT RANGE

Precision Gaskets
For Industrial Sealing

High-quality gaskets manufactured in a wide range of materials for pipe flanges, joints, and industrial sealing applications.

Prakash Seal Works offers precision-engineered gaskets designed to provide reliable sealing solutions for pipe flanges, industrial joints, high-pressure systems, and OEM applications. Our gaskets are manufactured using premium-grade rubber compounds and advanced die-cutting techniques to ensure perfect fit and long-lasting performance.

With materials including NBR, Neoprene, Silicone, EPDM, Viton (FKM), and Natural Rubber, we provide tailored sealing solutions for every industry. Custom sizes, shapes, and special compounds are available upon request.

View Specifications Get a Quote

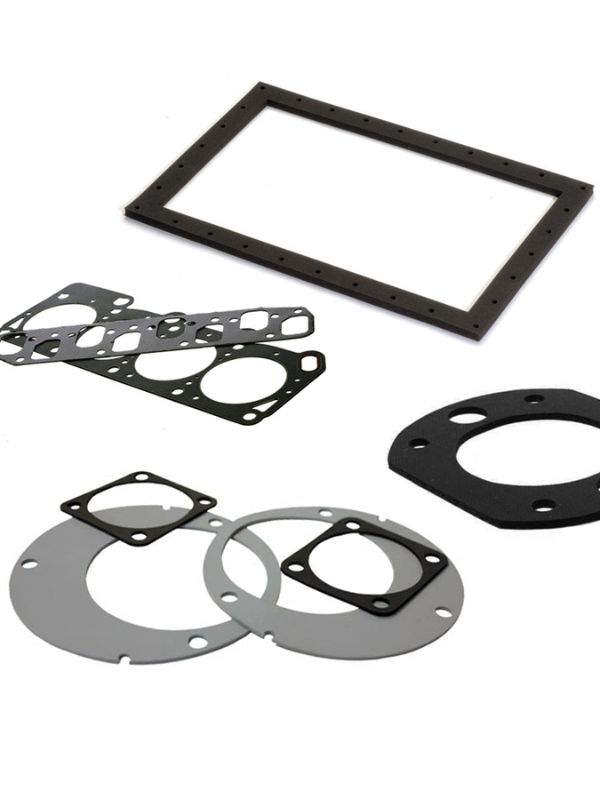

Prakash Seal Works Precision Gaskets Range

Gaskets Product Range

Explore our comprehensive range of precision gaskets available in multiple material grades to suit your specific application requirements.

Product Name Material Grade Size / Range Application
Flat Gasket NBR / Neoprene As Per Drawings Pipe Flanges & Joints Etc.
Ring Gasket Silicone / EPDM As Per Drawings Industrial Sealing Etc.
Rubber Sheet Gasket Natural Rubber 1 – 50 mm thick General Engineering Etc.
Spiral Wound Gasket NBR / Viton As Per Drawing High-Pressure Flanges Etc.
Die-Cut Custom Gasket Any Grade As Per Drawing OEM & Special Purpose Etc.

* Custom sizes, shapes, and special compounds available upon request. Contact us for your specific requirements.

Material Selection Guide

Choose the right gasket material for your application based on operating conditions, pressure, temperature, and chemical exposure.

NBR (Nitrile)

Best for oil, fuel, and hydraulic applications. Excellent resistance to petroleum-based fluids. Temperature range: -40°C to +120°C.

Oil Resistant

Silicone (VMQ)

Perfect for food grade, medical, and high-temperature applications. Excellent flexibility. Temperature range: -60°C to +200°C.

FDA Compliant

EPDM

Ideal for water, steam, outdoor, and HVAC applications. Excellent weather and ozone resistance. Temperature range: -50°C to +150°C.

Weather Resistant

Natural Rubber (NR)

Excellent for general engineering applications. High elasticity, good abrasion resistance, and vibration damping. Temperature range: -55°C to +80°C.

General Purpose

Viton (FKM)

Excellent for aggressive chemicals, high-temperature sealing, and high-pressure applications. Temperature range: -20°C to +200°C.

High Performance

Neoprene (CR)

Excellent for weather, ozone, and moderate oil exposure. Good balance of properties for industrial applications. Temperature range: -40°C to +120°C.

Outdoor Grade

Gasket Types & Features

Understanding the different types of gaskets and their applications helps in selecting the right sealing solution for your needs.

Flat Gaskets

Simple, cost-effective gaskets for pipe flanges and joints. Available in NBR and Neoprene. Ideal for low to medium pressure applications.

  • Easy to install
  • Excellent sealing performance
  • Custom sizes available

Ring Gaskets

Precision-moulded ring gaskets for industrial sealing applications. Available in Silicone and EPDM for demanding environments.

  • Excellent temperature resistance
  • Chemical resistant options
  • FDA grade available

Rubber Sheet Gaskets

Versatile sheet gaskets cut from natural rubber. Available in thicknesses from 1 mm to 50 mm for general engineering applications.

  • Thickness range: 1-50 mm
  • High elasticity
  • Cost-effective solution

Spiral Wound Gaskets

High-performance gaskets for high-pressure flanges. Combines metal and rubber for superior sealing under extreme conditions.

  • High-pressure rating
  • NBR / Viton options
  • Excellent reliability

Die-Cut Custom Gaskets

Custom-designed gaskets manufactured using precision die-cutting techniques for OEM and special purpose applications.

  • Any material grade
  • Precision die-cutting
  • OEM ready

Custom Compounds

Specialized rubber compounds developed for specific performance requirements including hardness, temperature, and chemical resistance.

  • Tailored formulations
  • Extended temperature range
  • Colour-coded options

How to Place an Order

Our streamlined ordering process ensures you get the right gaskets for your application quickly and efficiently.

1
Share Specifications

Provide your drawing, sample, sketch, or specification sheet with size, shape, and material requirements.

2
Get a Quote

Receive our detailed quotation within 24–48 hours with pricing and delivery timeline.

3
Approve Sample

We provide a sample for your approval before we proceed with bulk production.

4
Dispatch & Delivery

Production commences and your order is dispatched to your location, anywhere in India.
